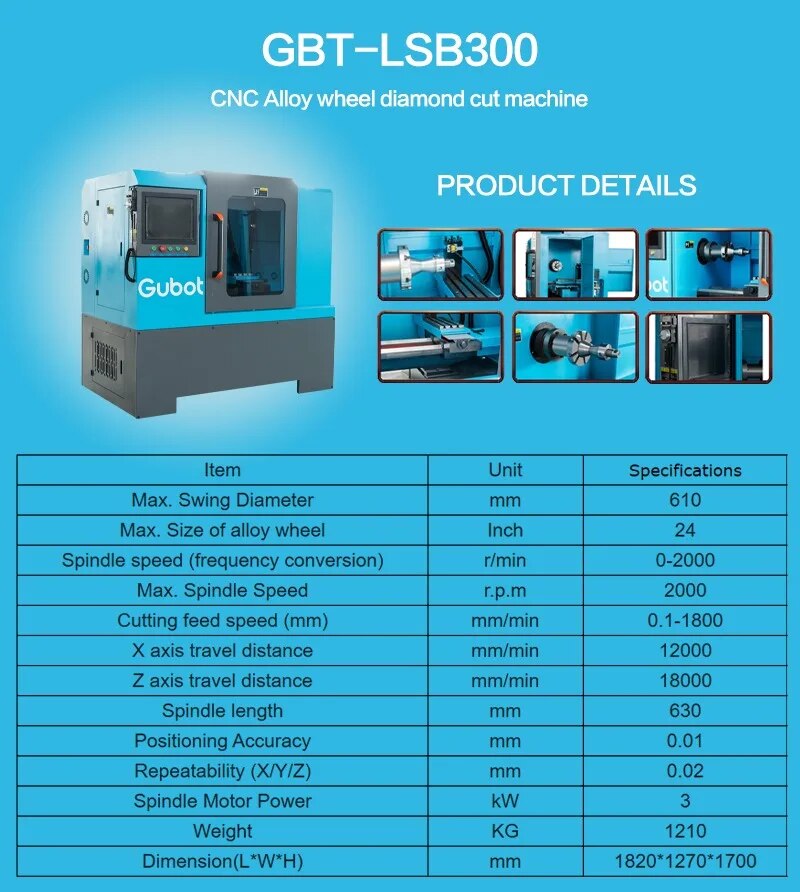

SPECIFICATIONS

Brand Name: None

Material: KRAFT

Origin: Mainland China

Condition: New

Type: Horizontal

Year: 2020

Max. Length of Workpiece (mm): 610 mm

Structure: Flat Bed Lathe

Max. Spindle Speed (r.p.m): 2000 r.p.m

Machining Capacity: Heavy Duty

Spindle Bore(mm): 48 mm

Width of bed (mm): 260 mm

Spindle Motor Power(kW): 3kw

No. of Spindles: Twin

Number of Axes: 2

Travel (X Axis)(mm): 460 mm

Travel (Z Axis)(mm): 630 mm

Positioning Accuracy (mm): 0.01

Repeatability (X/Y/Z) (mm): 0.01

Place of Origin: Shanghai, China

Dimension(L*W*H): 1700*1200*1700 mm

Brand Name: Gubot

Model Number: GBT-LSB300

Voltage: 380V / 220V ( Three Phase)

CNC Control System: Gubot

Tool Post Stations: 4

Weight (KG): 1100

Warranty: 2 years

Key Selling Points: Easy to Operate

Showroom Location: United Kingdom, France, Germany, India, South Africa, Denmark

Marketing Type: New Product 2021

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 2 years

Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox

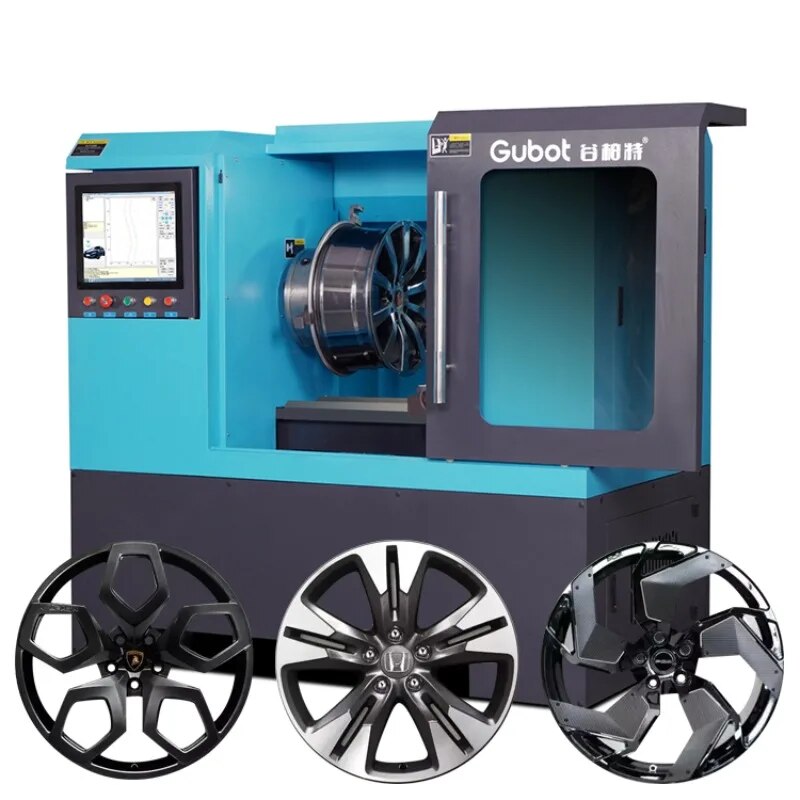

Product name: wheel repair machine

CNC or Not: CNC

Automatic Grade: Automatic

Max. Size of alloy wheel: 24 inch

Cutting feed speed (mm/min): 0.1-1800

Range of spindle speed: 50-2000 rpm

Spindle speed control: Automatic

Motor: servo motor

Moving track: Import rails

After-sales Service Provided: Online support
