SPECIFICATIONS

Brand Name: lintratek

Origin: Mainland China

Certification: CE

Certification: FCC

Certification: RoHS

Frequency: 900/1800/2100Mhz

Uplink:890~915/1710~1785mhz/1920~1980mhz: Downlink:935~960mhz/1805~1880mhz/2110~2170mhz

Work system: 2g+3g+4g (900/1800/2100mhz)

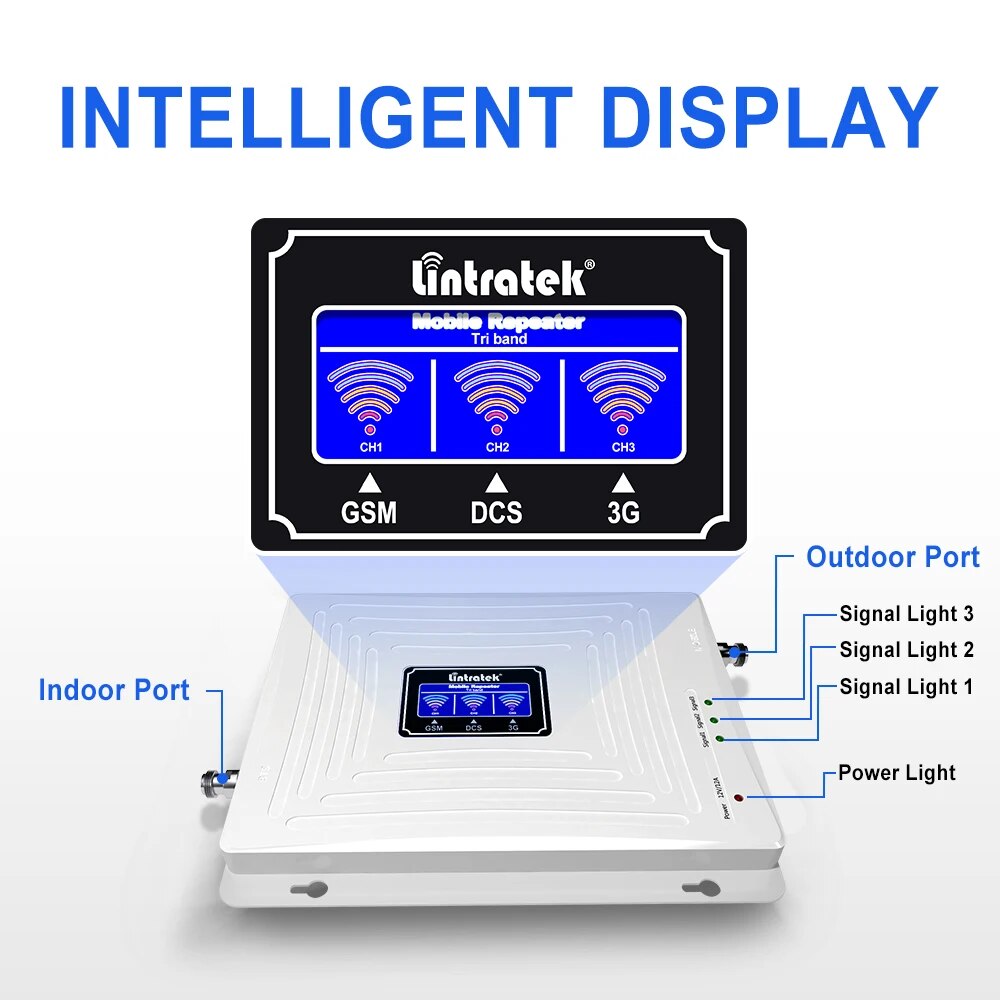

Feature: LCD Display; low radiation,low consumption

Cover Area: 200~800 Square Meters without any barrier

Output Power: 20dBm

Gain: 68dB

Power supply: AC 100~240V, 50/60Hz ;DC 12V 2A

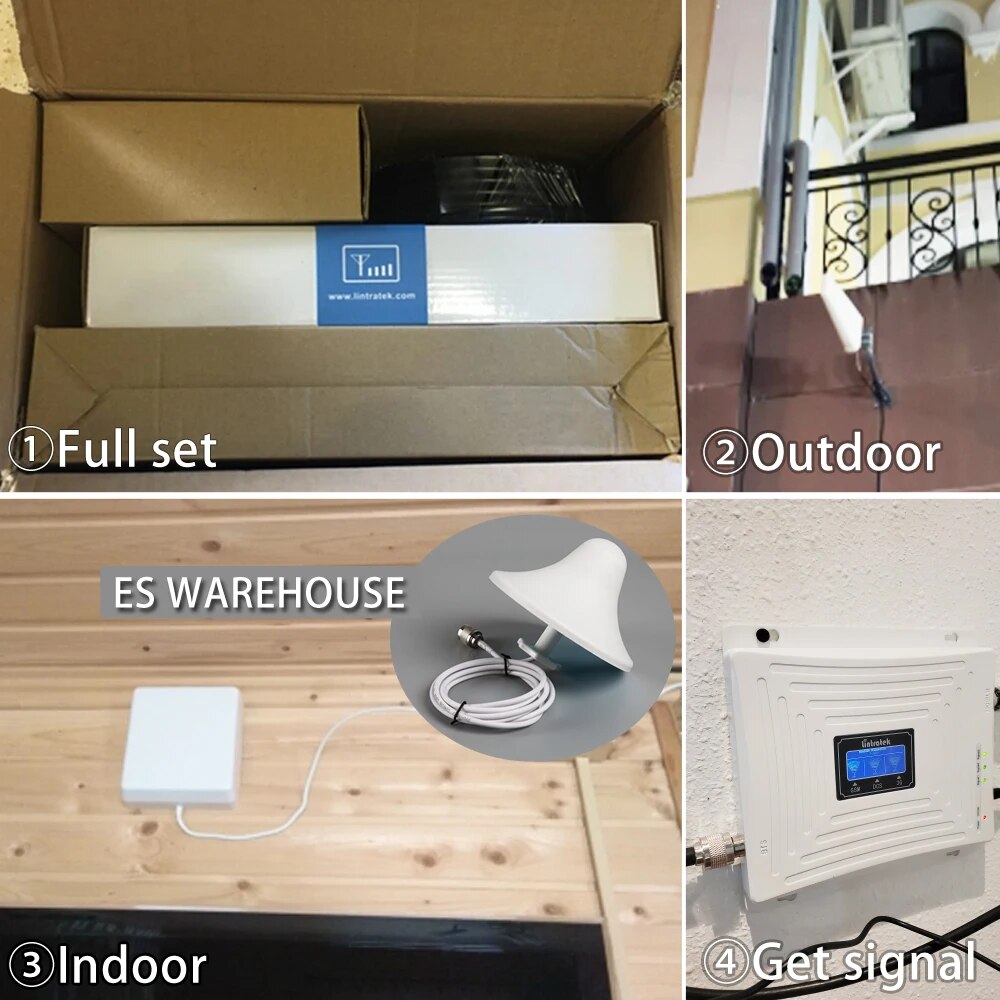

Type: Full kit . wall installation, easy to install

External Log-periodic antenna: 10dB gain, 800~2700mhz, N female connector

Internal panel antenna: 9db gain,700~2700mhz , N male connector

Cable: 10m cable from China or 15m cable from Russian warehouse

Spurious Emission: 1GHz~12.75GHz≤ -30 dBm ; 9KHz~1GHz≤ -36 dBm

Intermodulation Products: 1GHz~12.75GHz≤ -30 dBm; 9KHz~1GHz≤ -36 dBm

MTBF: over 50000 hours

Power Comsumption: less than 24W

Impedance: 50 ohm

RF Connector (Repeater): N-Female

Cooling: Heatsink Convection cooling

Environment Conditions: IP40

Operating Temperature: -10℃ ~ 55℃

Band: Band8, Band3, Band 1; GSM,DCS LTE, WCDMA
